Centrifugal Pump
IHF Series Fluoroplastic Lined Chemical Centrifugal Pump
- OEM
- Factory Direct Supply
- ISO9001 Certified
Product Overview
Product Description

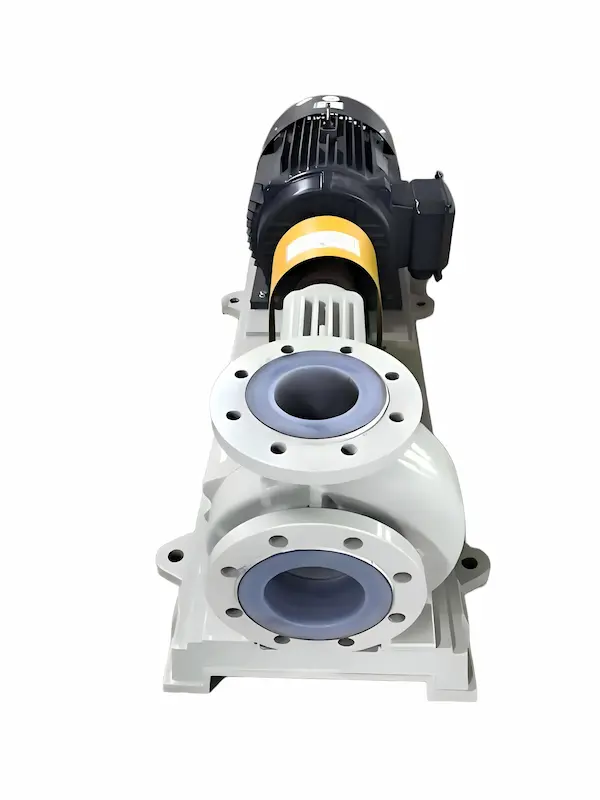

The IHF Series is a premium chemical centrifugal pump for acids, engineered for ultra-corrosion resistance in demanding chemical environments. This fluoroplastic lined centrifugal pump features PTFE/FEP lining, providing exceptional protection against sulfuric acid, hydrochloric acid, nitric acid, and hydrofluoric acid.
With performance parameters of flow 6.3-240 m³/h and head 5-132 m, the IHF Series fluoroplastic pump handles a wide range of aggressive chemical transfer applications. The advanced lining technology enables safe operation across extreme temperatures from -85°C to +200°C.
Built with durable cast iron outer casing and complete fluoroplastic wetted parts, this chemical centrifugal pump for acids delivers reliable, leak-free performance. Ideal for chemical processing, pharmaceutical manufacturing, metal finishing, and waste acid treatment facilities. ISO certified, each pump undergoes rigorous quality testing. Backed by professional engineering support and global availability, the IHF Series offers a cost-effective, long-lasting solution for your most challenging corrosive fluid handling requirements.
KEY FEATURES
- Full fluoroplastic (FEP/PTFE) lining provides exceptional resistance to strong acids and alkalis.
- Flow rates from 6.3 to 240 m³/h for various chemical processing applications.
- Delivers heads from 5 to 132 meters to meet diverse pressure requirements.
- Handles temperatures from -85°C to +200°C for extreme thermal conditions.
- Suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, and aqua regia.
- Available with mechanical seals or packing seals for leak-free operation.
- Ideal for chemical, pharmaceutical, metallurgical, and electroplating industries.
- ISO 9001 certified, ensuring quality and reliability in corrosive environments.
Specifications
Technical Parameters
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model Series | IHF | Pump Type | Fluoroplastic Lined Chemical Centrifugal Pump |
| Flow Rate (Q) | 6.3 – 240 m³/h | Head (H) | 5 – 132 m |
| Speed (n) | 1450 rpm or 2900 rpm | Operating Temperature | -85 °C to +200°C |
| Wetted Materials | FEP / PTFE Fluoroplastic Lining | Non-Wetted Materials | Cast Iron / Stainless Steel (External Casing) |
| Seal Type | Mechanical Seal / Packing Seal | Drive Type | Direct Coupling with Electric Motor |
| Installation Type | Horizontal / Baseplate Mounted | Motor Protection Class | IP54 / IP55 (Customizable) |
| Certifications | ISO 9001, ISO 14001, ISO 45001 | Applicable Media | Sulfuric Acid, Hydrochloric Acid, Nitric Acid, Hydrofluoric Acid, Acetic Acid, Aqua Regia, Strong Alkalis, Oxidizing Agents, Organic Solvents |

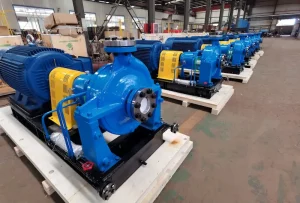

Manufacturing
Precision engineering, advanced facilities.
Certifications
Global certifications for reliable performance.
OEM/ODM
Tailor-made pumps for your specifications.
Packaging
Robust export packaging for safe delivery.
Use Cases
Applications
The IHF series fluoroplastic lined chemical pump is designed for safe and reliable transfer of highly corrosive liquids, providing superior chemical resistance for the most demanding industrial applications.
-
Acid Transfer & Dosing
Ideal for transferring concentrated sulfuric acid, hydrochloric acid, and nitric acid in chemical processing plants.
-
Electroplating & Metal Finishing
Circulates acid baths, plating solutions, and etchant chemicals in electroplating and PCB manufacturing.
-
Pharmaceutical Production
Handles aggressive pharmaceutical intermediates, active ingredients, and process solvents.
-
Petrochemical & Refining
Suitable for corrosive chemical injection, sampling, and transfer in refinery and petrochemical operations.
-
Metallurgical & Smelting
Transfers electrolyte solutions in non-ferrous metal smelting and hydrometallurgical processes.
-
Wastewater Treatment
Handles acidic wastewater, chemical dosing, and pH adjustment in industrial treatment facilities.
-
Ion Membrane Caustic Soda Projects
Reliable for chlorine water, waste acid, and alkali transfer in chlor-alkali industry applications.
-
Automotive Manufacturing
Used for acid pickling baths and paint shop chemical circulation in automotive production lines.
-
Pulp & Paper Industry
Handles bleaching chemicals, acids, and process liquors in paper manufacturing.
-
Pesticide & Fertilizer Production
Transfers corrosive raw materials and intermediates in agrochemical manufacturing.
Frequently Asked Questions
What makes the IHF fluoroplastic pump different from stainless steel chemical pumps?
What is the maximum temperature this acid transfer pump can handle?
Can this pump handle hydrofluoric acid and aqua regia?
What industries commonly use this corrosion-resistant centrifugal pump?
What type of seal is used for this fluoroplastic lined pump?
How does the fluoroplastic lining stay bonded to the metal casing?
Do you offer OEM service for this high-temperature acid pump?
What certifications do your ISO certified chemical pumps hold?
What is the typical lead time for standard IHF models?
Can this pump handle solvents and organic chemicals?
